MB NTC B450M p/ AMD AM4 2xDDR4/1xPCI-e/4xSATA/1xM.2 NVMe

MB NTC B450M p/ AMD AM4 2xDDR4/1xPCI-e/4xSATA/1xM.2 NVMe

ESPECIFICAÇÕES
Processador
Supports AMD AM4 socket for AMD Ryzen™ 1000/2000/3000/4000/5000 Processors and / Athlon™ Processors
4+2 Phase Thermal Design Power
100% design de capacitor sólido

Chipset
AMD® B450 Chipset

Memória

2x DDR4 dimm até 64GB de Memória RAM
Dual Channel - Suporta módulos DDR4 3200/3000/2800/2666/2400/2133MHz*
*Não possui XMP

Áudio

Realtek Audio codec ALC897

Vídeo

Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
* Actual support may vary by CPU.

Rede

Realtek RTL8111H (10/100/1000 Mbit)

Armazenamento

1 x M.2 Slot para SSD (2242/2280) para PCI-e x4 Gen3 e SATA
4 x SATA 3 6Gb/s

Slots de Expansão

1 x PCI Express X16 Gen 3.0 slot(s)
1 x PCI Express X1 Gen 3.0 slot(s)

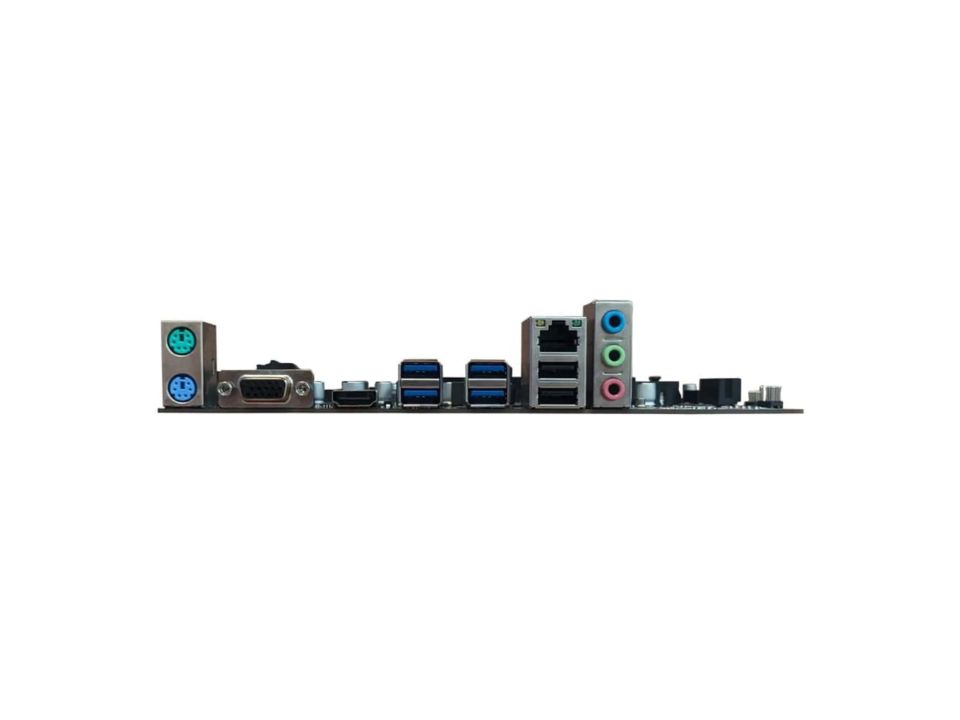

Conectores do Painel Traseiro

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Audio port (Line Out/Line In/Mic In)
1 x RJ-45 port
1 x HDMI 2.0 port(s)
1 x D-Sub (VGA) port(s)
4 x USB 3.2 Gen 2x1 Type A port(s)
2 x USB2.0 port(s)

Conectores Internos

1 x 24-pin ATX Power Supply connector
1 x 8-pin ATX 12V Power Connector
1 x 4-pin CPU_FAN connector
1 x 4-pin SYS_FAN1 conector
1 x Front panel audio header
1 x Front panel header
1 x USB 3.0 Gen 1x1 header
1 x USB 2.0 header
1 x CLR_CMOS header
1 x SPEAKER

Form Factor

Micro ATX Form Factor; 21.5cm x 18.5cm
